Battery Specifications

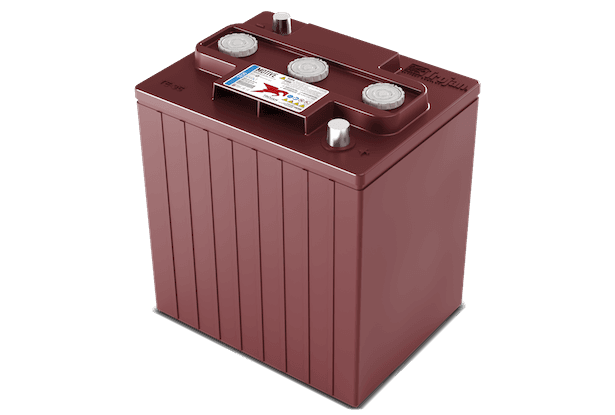

TE35 Deep-Cycle Flooded
Capacity Minutes Capacity Amp-Hours Energy (kWh) Dimensions inches (mm) Weight lbs. (kg)


@25 Amps
500
@75 Amps
135

5-Hr Rate

201
10-Hr Rate
225
20-Hr Rate
245
100-Hr Rate
270

1.63

Length
9.60 (244)
Width
7.50 (191)
Height
10.60 (269)
68 (31)
TE35 / Screw-In

Terminal Types

AP

Automotive Post Terminal
