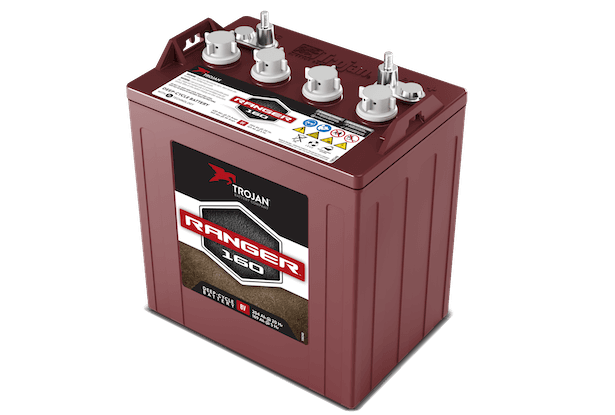

Ranger 160 8V Flooded Lead Acid Battery

Trojan's Ranger™ 160 8V Flooded Lead Acid battery offers 35% more travel time between recharges, allowing consumers to embark on longer excursions. Durability, reliability, and proven technology mean you can rely on Trojan's Ranger™ 160 battery for consistent performance day in and day out.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 430 @56 Amps / 160

Capacity Amp-Hours

5-Hr Rate / 169 Ah 10-Hr Rate / 186 Ah 20-Hr Rate / 204 Ah 100-Hr Rate / 225 Ah

Energy (kWh)

1.80

Dimensions inches (mm)

Length / 10.21 (259) Width / 7.10 (180) Height / 11.90 (302)

Weight lbs. (kg)

76 (34)

Operating Temperature

-4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • Featuring Alpha Plus® paste with T2 Technology for maximum sustained performance, longer life and increased total energy
  • Maxguard T2 advanced separator sustains performance providing exceptionally longer battery life and significantly lowering your operating costs.
  • Manufactured polypropylene rugged case
  • Heat and corrosion resistant
  • HydroLink™ Single-Point Watering System makes maintenance easy and safe.
  • Only 5-15% self-discharge per month
  • 99% recyclable

TERMINAL TYPES

0

Embedded High Profile Terminal EHPT

Applications
