Battery Specifications

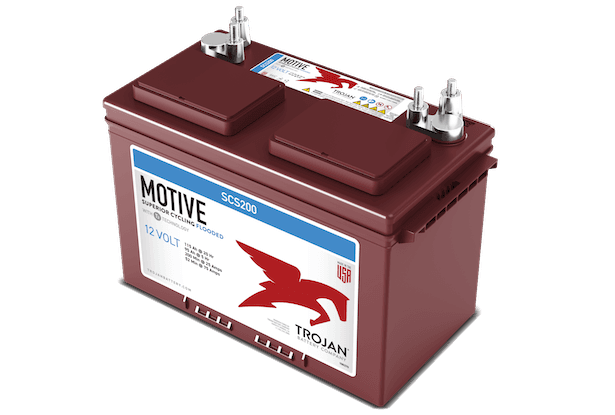

SCS200 Deep-Cycle Flooded
Capacity Minutes Capacity Amp-Hours Energy (kWh) Dimensions inches (mm) Weight lbs. (kg)


@25 Amps
200
@75 Amps
52

5-Hr Rate

95
10-Hr Rate
105
20-Hr Rate
115
100-Hr Rate
128

1.54
Length
12.80 (324)
Width
6.73 (171)
Height
9.80 (248)
60 (27)
SCS200 / POD-Vent

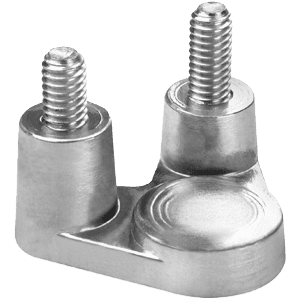

Terminal Types

DWNT

Dual Wingnut Terminal
