DC-8V 8V Flooded Battery

DC-8V 8V Flooded Battery

  • DC-8V 8V Flooded Battery

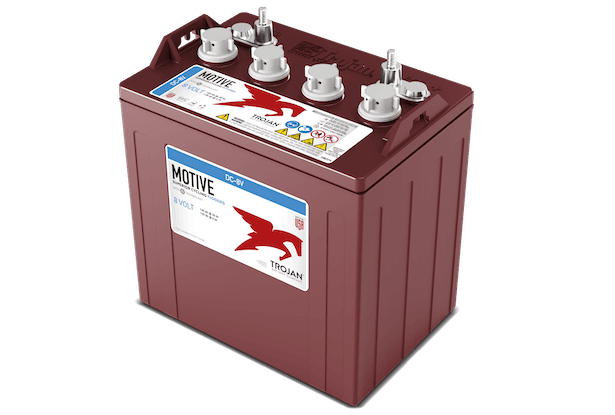

DC-8V 8V Flooded Lead Acid Battery

The Trojan DC-8V 8V Flooded Lead Acid Battery with Master Vent delivers high capacity and high energy for your golf cart, electric vehicle and solar applications. With flooded battery technology, you get you the rugged durability and outstanding performance you need to keep moving, when keeping your costs low is key.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 277 @56 Amps / 110

Capacity Amp-Hours

5-Hr Rate / 135 Ah 10-Hr Rate / 147 Ah 20-Hr Rate / 160 Ah 100-Hr Rate / 176 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 10.24 (260) Width / 7.10 (180) Height / 11.13 (283)

Weight lbs. (kg)

61 (28)

Operating Temperature

-4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • All-around powerhouse, workhorse batteries
  • Longest lasting of the lead acid batteries
  • Utilizes Trojan advanced T2™ technology
  • Rugged, durable, long life batteries
  • Deliver maximum sustained performance
  • Fully recyclable
  • Requires regular watering with distilled water after charging
  • Must be kept upright to prevent spillage



Embedded High Profile Terminal EHPT
