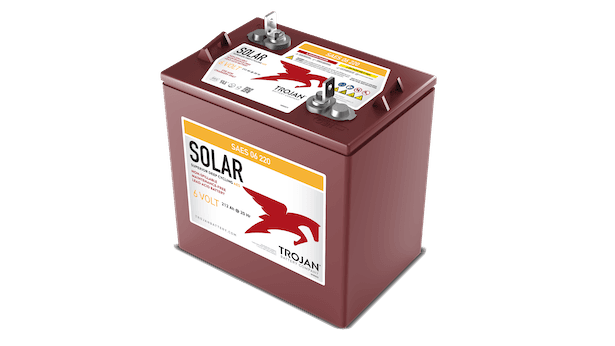

Solar SAES 06 220 6V AES AGM Battery

The Solar SAES 06 220 6V AES AGM battery harnesses deep cycling power for renewable energy, hybrid, and backup power applications. Trojan Solar AES delivers up to 3x the cycle life of standard AGM batteries, at high sustained performance. Trojan Solar AES AGM batteries maintain high capacity in extreme deep cycling (up to 100% DoD), in challenging temperatures and in partial charging conditions.

BAttery Quick Facts
Capacity Minutes


Capacity Amp-Hours

10-Hr Rate / 190 Ah 20-Hr Rate / 209 Ah 48-Hr Rate / 227 Ah 72-Hr Rate / 231 Ah 100-Hr Rate / 235 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 10.30 (262) Width / 7.06 (179) Height / 10.73 (273)

Weight lbs. (kg)

68 (31)

Operating Temperature

-40°F to 140°F (-40°C to 60°C)

Features & Benefits

Lasts Longer: Up to 3x longer cycle life than standard AGM. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40°F to 160°F (-40°C to 71°C).

Delivers harmless PSoC: Tested to withstand partial state of charge, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: Trojan AES is classified as non-spillable and can be safely mounted horizontally to fit difficult locations. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA advanced AGM battery is backed by a three-year warranty.
  • AGM Charger: Charge with existing AGM charger and profiles.



M8 Insert


M8 with LT Adapter
