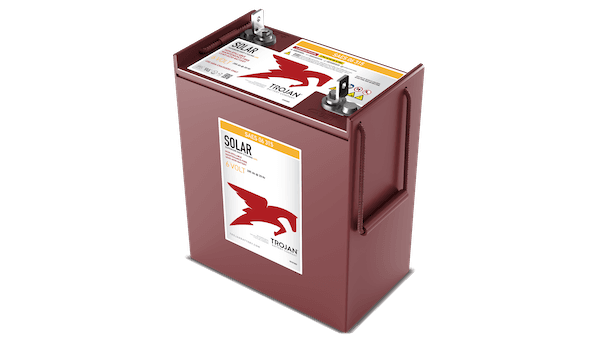

Solar SAES 06 315 6V AES AGM Battery

The Solar SAES 06 315 6V AES AGM battery provides an outstanding power source for a wide range of off-grid and grid applications. This deep cycle battery delivers increased total energy output to improve the performance of solar applications. Trojan Solar AES delivers up to 3x the cycle life of standard AGM batteries, with high sustained performance. These advanced AGM batteries maintain high capacity in extreme deep cycling (up to 100% DoD), in challenging temperatures and partial charging conditions.

BAttery Quick Facts
Capacity Minutes


Capacity Amp-Hours

10-Hr Rate / 255 Ah 20-Hr Rate / 285 Ah 48-Hr Rate / 306 Ah 72-Hr Rate / 317 Ah 100-Hr Rate / 327 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 11.66 (296) Width / 6.94 (176) Height / 13.99 (355)

Weight lbs. (kg)

101 (45)

Operating Temperature

-40°F to 140°F (-40°C to +60°C)

Features & Benefits

Lasts Longer: Up to 3x longer cycle life than standard AGM batteries. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40°F to 160°F (-40°C to 71°C).

Delivers harmless PSoC: Tested to withstand partial state of charge, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: Trojan AES is classified as non-spillable and can be safely mounted horizontally to fit difficult locations. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA battery is backed by a three-year warranty.
  • AGM Charger: Charge with existing AGM charger and profiles.



M8 Insert


M8 with LT Adapter
