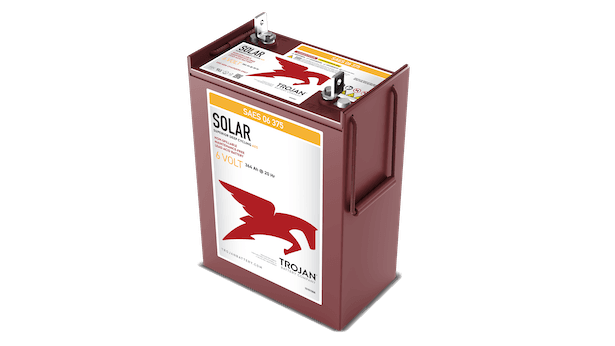

Solar SAES 06 375 6V AES Battery

The Solar SAES 06 375 6V AES battery provides the features needed to store energy and deliver power to a wide range of applications. Trojan Solar AES delivers up to 3x the cycle life of standard AGM with high sustained performance. Trojan Solar AES batteries maintain high capacity in extreme deep cycling (up to 100% DoD), challenging temperatures and partial charging conditions.

BAttery Quick Facts
Capacity Minutes

N/A

Capacity Amp-Hours

10-Hr Rate / 327 Ah 20-Hr Rate / 337 Ah 48-Hr Rate / 389 Ah 72-Hr Rate / 394 Ah 100-Hr Rate / 400 Ah

Energy (kWh)

2.02

Dimensions inches (mm)

Length / 11.66 (296) Width / 6.94 (176) Height / 16.31 (414)

Weight lbs. (kg)

114 (52)

Operating Temperature

-40 °F to 160°F (-40° C to 71° C)

Features & Benefits

Lasts Longer: Up to 3x longer cycle life than standard AGM. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40 °F to 160°F (-40° C to 71° C).

Delivers harmless PSoC: Tested to withstand partial state of charge, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: Trojan AES is classified as non-spillable and can be safely mounted horizontally to fit difficult locations. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA battery is backed by a three-year warranty.
  • AGM Charger: Charge with existing AGM charger and profiles.

TERMINAL TYPES

0

M8 1.25x15mm Stud

0

L-Terminal LT
