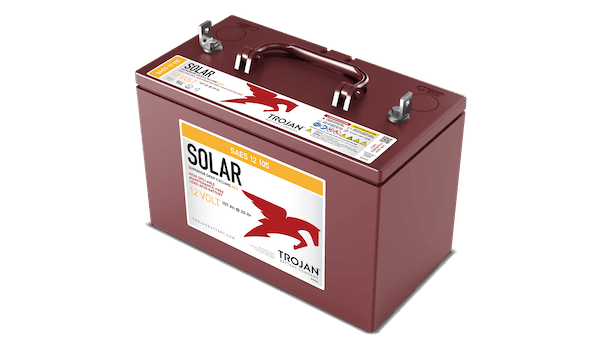

Solar SAES 12 105 12V AES Battery

The Solar SAES 12 105 12V Solar AES battery provides deep-cycling power to multiple applications, such as renewable energy and backup power. This maintenance-free battery offers a reliable power source for a wide range of off-grid and unreliable grid applications. Trojan Solar AES delivers up to 3x the cycle life of standard AGM with high sustained performance.​ Trojan Solar AES batteries maintain high capacity in extreme deep cycling (up to 100% DoD), challenging temperatures and partial charging conditions.

BAttery Quick Facts
Capacity Minutes


Capacity Amp-Hours

10-Hr Rate / 94 20-Hr Rate / 100 48-Hr Rate / 109 72-Hr Rate / 111 100-Hr Rate / 113

Energy (kWh)


Dimensions inches (mm)

Length / 12.80 (325) Width / 6.81 (173) Height / 9.34 (237)

Weight lbs. (kg)

67 (30)

Operating Temperature

-40 °F to 160°F (-40° C to 71° C)

Features & Benefits

Lasts Longer: Up to 3x longer cycle life than standard AGM. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40 °F to 160°F (-40° C to 71° C).

Delivers harmless PSoC: Tested to withstand partial state of charge, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: Trojan AES is classified as non-spillable and can be safely mounted horizontally to fit difficult locations. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA battery is backed by a three-year warranty.
  • AGM Charger: Charge with existing AGM charger and profiles.



M8 Insert


M8 with LT Adapter
