SSIG 06 235 6V Flooded Battery

SSIG 06 235 6V Flooded Battery

  • SSIG 06 235 6V Flooded Battery

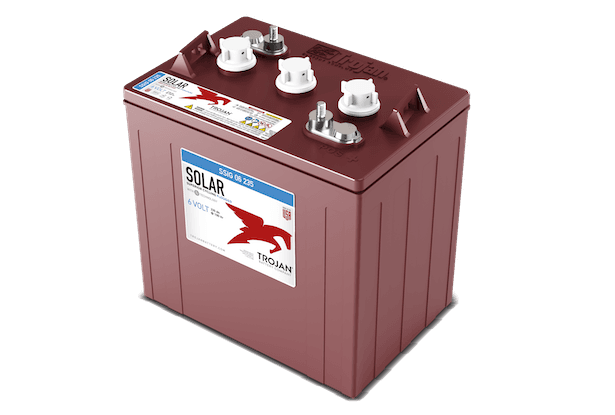

SSIG 06 235 6V Flooded Lead Acid Battery

Solar SSIG 06 235 6V flooded lead acid battery provides outstanding performance and increased energy day in and day out. Trojan Battery engineered the SSIG 06 235 6V battery for Solar applications as well as off-grid, grid-tied, and unstable grid environments.

BAttery Quick Facts
Capacity Minutes

N/A

Capacity Amp-Hours

10-Hr Rate / 196 Ah 20-Hr Rate / 214 Ah 48-Hr Rate / 220 Ah 72-Hr Rate / 228 Ah 100-Hr Rate / 235 Ah

Energy (kWh)

1.42

Dimensions inches (mm)

Length / 10.30 (262) Width / 7.13 (181) Height / 10.74 (273)

Weight lbs. (kg)

58 (26)

Operating Temperature

-4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • Maxguard® XL Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs.
  • Polyon™ ultra-rugged case design protects against damage caused by harsh environmental conditions and safeguards against potential acid leaks.
  • Optimized paste formulation for deep cycle operation
  • Flame arrestors
  • Shock and vibration resistant
  • Horizontal and vertical installations
  • No watering required for a non-spillable experience.
  • Less than 3% self-discharge per month
  • 99% recyclable

TERMINAL TYPES

0

Embedded Low Profile Terminal ELPT
