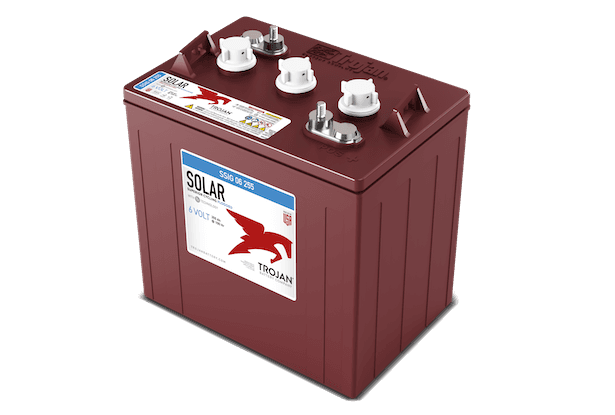

SSIG 06 255 6V Flooded Lead Acid Battery

Trojan's SSIG 06 255 battery delivers outstanding performance day-in and day-out. The Solar Signature Line of deep cycle flooded lead acid batteries incorporates advanced features, such as Trojan's MaxGuard™ T2 separator and Alpha Plus® Paste with T2 technology™. Together, both proprietary technologies increase sustained capacity and total overall ampere-hours, resulting in more operating power for solar applications.

BAttery Quick Facts
Capacity Minutes


Capacity Amp-Hours

10-Hr Rate / 211 Ah 20-Hr Rate / 229 Ah 48-Hr Rate / 237 Ah 72-Hr Rate / 247 Ah 100-Hr Rate / 255 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 10.30 (262) Width / 7.13 (181) Height / 10.74 (273)

Weight lbs. (kg)

62 (28)

Operating Temperature

-4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • Maxguard® XL Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs.
  • Polyon™ ultra-rugged case design protects against damage caused by harsh environmental conditions and safeguards against potential acid leaks.
  • Optimized paste formulation for deep cycle operation
  • Flame arrestors
  • Shock and vibration resistant
  • Horizontal and vertical installations
  • No watering required for a non-spillable experience.
  • Less than 3% self-discharge per month
  • 99% recyclable



Embedded Low Profile Terminal ELPT
