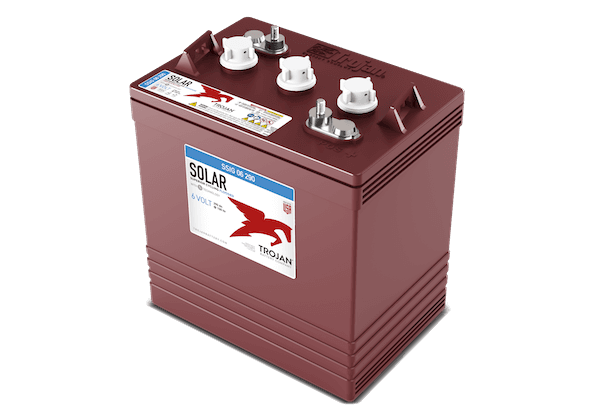

SSIG 06 290 6V Flooded Battery

SSIG 06 290 6V Flooded Battery

  • SSIG 06 290 6V Flooded Battery

SSIG 06 290 6V Flooded Battery

Trojan's SSIG 06 290 Deep Cycle Flooded battery features an embedded low profile terminal that delivers outstanding performance, longer life, and increased energy. The SSIG 06 290 battery incorporates advanced battery features such as Trojan's Maxguard® T2 separator and Alpha Plus® Paste with T2 Technology™.

BAttery Quick Facts
Capacity Minutes

N/A

Capacity Amp-Hours

10-Hr Rate / 243 20-Hr Rate / 267 48-Hr Rate / 271 72-Hr Rate / 281 100-Hr Rate / 290

Energy (kWh)

1.74

Dimensions inches (mm)

Length / 10.30 (262) Width / 7.13 (181) Height / 11.48 (292)

Weight lbs. (kg)

72 (33)

Operating Temperature

4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • Maxguard® XL Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs.
  • Polyon™ ultra-rugged case design protects against damage caused by harsh environmental conditions and safeguards against potential acid leaks.
  • Optimized paste formulation for deep cycle operation
  • Flame arrestors
  • Shock and vibration resistant
  • Horizontal and vertical installations
  • No watering required for a non-spillable experience.
  • Less than 3% self-discharge per month
  • 99% recyclable

TERMINAL TYPES

Embedded Low Profile Terminal ELPT

Embedded Low Profile Terminal ELPT
