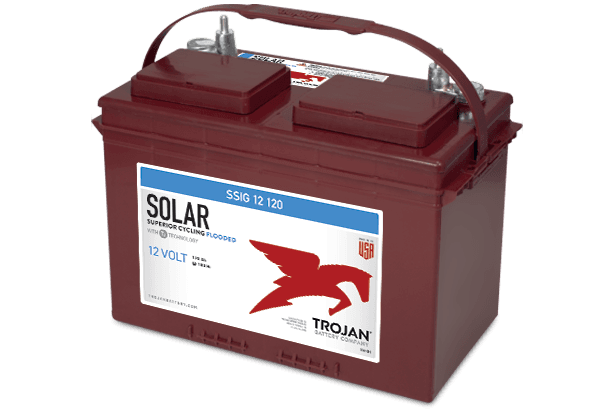

SSIG 12 120 12V Flooded Battery

The Trojan SSIG 12 120 12V deep cycle flooded battery with Bayonet Cap delivers the high performance your solar applications require. Optimized for renewable energy, it's designed to deliver maximum sustained performance, long life and increased energy and is ideal for off-grid, grid-tied and unstable grid environments.

BAttery Quick Facts
Capacity Minutes


Capacity Amp-Hours

10-Hr Rate / 99 Ah 20-Hr Rate / 107 Ah 48-Hr Rate / 111 Ah 72-Hr Rate / 116 Ah 100-Hr Rate / 120 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 12.84 (326) Width / 6.60 (168) Height / 9.74 (247)

Weight lbs. (kg)

55 (25)

Operating Temperature

-4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • Engineered to withstand the rigorous conditions of renewable energy applications.
  • Alpha Plus® Paste with T2™ technology maximizes sustained performance and increases total energy.
  • Exceptional structural adhesion enhances current flow and reduces downtime and maintenance costs.
  • Maxguard® T2 Separator optimize porosity development in active material to sustain battery for longer periods.
  • Maximum Flame Arrestors provide maximum safety by preventing sparks from igniting the hydrogen in the battery cell.
  • Premium casing protects against damage caused by harsh conditions.
  • 99% recyclable



Universal Terminal UT
