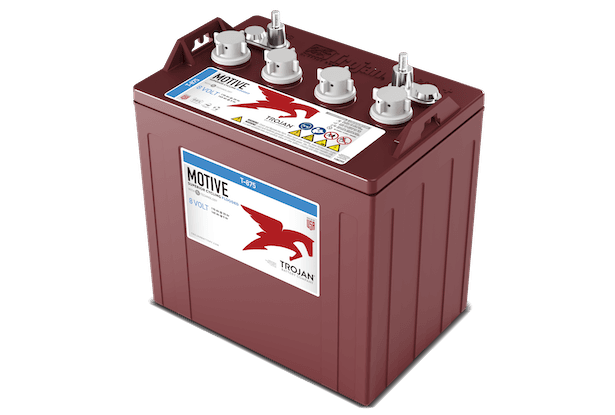

T-875 8V Flooded Lead Acid Battery

Reliable Power Storage Solutions

Trojan's T-875 8V flooded battery delivers a new class of deep cycle technology. Its outstanding deep cycle capability and versatility makes the T-875 a reference not only for golf cart owners but for use on renewable energy (solar), aerial lifts, scrubber machines, and electrical material handling equipment, among many other applications.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 295 @56 Amps / 117

Capacity Amp-Hours

5-Hr Rate / 145 Ah 10-Hr Rate / 155 Ah 20-Hr Rate / 170 Ah 100-Hr Rate / 189 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 10.27 (261) Width / 7.10 (180) Height / 11.14 (283)

Weight lbs. (kg)

63 (29)

Operating Temperature

4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • Part of the Signature Line, the flagship Trojan flooded lead-acid batteries
  • Featuring Alpha Plus® paste with T2 Technology for maximum sustained performance, longer life and increased total energy
  • Maxguard T2 advanced separator sustains performance providing exceptionally longer battery life and significantly lowering your operating costs.
  • Manufactured polypropylene rugged case
  • Heat and corrosion resistant
  • HydroLink™ single-point watering system makes maintenance easy and safe
  • Only 5-15% self-discharge per month
  • 4 different terminal types
  • 99% recyclable



Embedded Low Profile Terminal ELPT


Embedded High Profile Terminal EHPT
