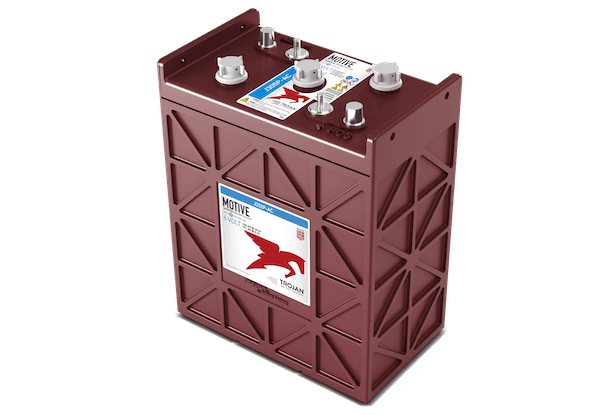

J305P-AC 6V Flooded Battery

J305P-AC 6V Flooded Battery

  • J305P-AC 6V Flooded Battery

J305P-AC 6V Flooded Lead Acid Battery

The J305P-AC 6V Flooded Lead Acid Battery offers high-energy output for different applications, such as floor cleaning machines, aerial work platforms, and transportation. The technology of this battery enhances maximum uptime and more productive hours.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 711 @75 Amps / 195

Capacity Amp-Hours

5-Hr Rate / 271 Ah 10-Hr Rate / 304 Ah 20-Hr Rate / 330 Ah 100-Hr Rate / 367 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 11.66 (296) Width / 6.94 (176) Height / 14.42 (366)

Weight lbs. (kg)

96 (44)

Operating Temperature

-4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • AC Series™ offers high- to low-capacity points
  • Maxguard® Advanced Design Separator and Alpha Plus® paste formulation for long life, industry-leading performance and lower overall maintenance costs.
  • Two battery case options:
  • Polyon™ case for exceptional durability in heavy service applications
  • Generic case design for standard applications
  • Heat and corrosion resistant
  • With braided rope handles for easy carrying
  • HydroLink™ single-point watering system available
  • Only 5-15% self-discharge per month
  • 99% recyclable



Automotive Post & Stud Terminal DT
