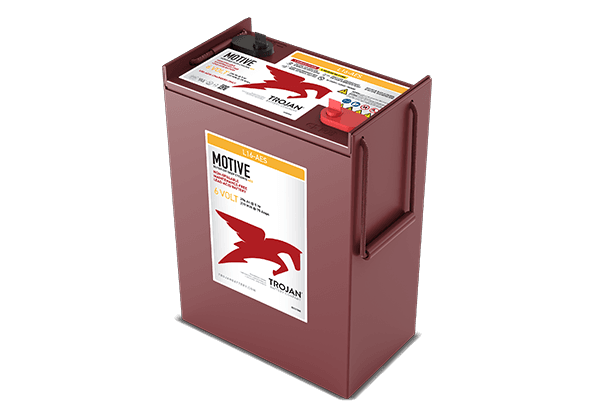

L16-AES 6V AGM Battery

The L16-AES 6V AGM battery provides ample energy for the best performance across various applications. Trojan AES delivers up to 3x the cycle life of standard AGM with high sustained performance. Trojan AES AGM batteries maintain high capacity in extreme deep cycling (up to 100% DoD), challenging temperatures and partial charging conditions.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 735 @75 Amps / 206

Capacity Amp-Hours

5-Hr Rate / 294 Ah 10-Hr Rate / 320 Ah 20-Hr Rate / 355 Ah 100-Hr Rate / 406 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 11.66 (296) Width / 6.94 (176) Height / 16.41 (417)

Weight lbs. (kg)

114 (52)

Operating Temperature

-40°F to 140°F (-40°C to 60°C)

Features & Benefits

Lasts Longer: Up to 3x longer cycle life than standard AGM. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40 °F to 160°F (-40° C to 71° C).

Delivers harmless PSoC: Tested to withstand partial state of charge, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: Trojan AES is classified as non-spillable and can be safely mounted horizontally to fit difficult locations. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA battery is backed by a three-year warranty.
  • AGM Charger: Charge with existing AGM charger and profiles.



Automotive Post & Stud Terminal DT


M8 Insert


M8 with LT Adapter
