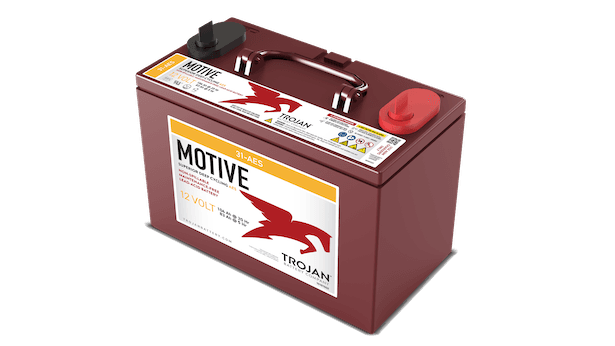

31-AES 12V AGM Battery

The 31-AES 12V AGM battery is manufactured with high-quality components, providing great energy output for better performance in different uses, such as Recreational Vehicles or Floor Cleaning Machines. Its design enables horizontal or vertical installation to adapt to different applications. Trojan AES AGM batteries deliver up to 3x the cycle life of standard AGM, for high sustained performance. Trojan AES AGM batteries maintain high capacity in extreme deep cycling (up to 100% DoD), challenging temperatures and partial charging conditions.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 177

Capacity Amp-Hours

5-Hr Rate / 83 Ah 10-Hr Rate / 92 Ah 20-Hr Rate / 104 Ah 100-Hr Rate / 115 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 12.80 (325) Width / 6.81 (173) Height / 9.37 (238)

Weight lbs. (kg)

67 (30)

Operating Temperature

-40°F to 140°F (-40°C to 60°C)

Features & Benefits

Lasts Longer: Up to 3x longer cycle life than standard AGM batteries. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40 °F to 160°F (-40° C to 71° C).

Delivers harmless PSoC: Tested to withstand PSoC, or partial state of charge, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: Trojan AES AGM is classified as non-spillable and can be safely mounted horizontally to fit your space. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA absorbent glass mat battery is backed by a 3-year warranty.
  • AGM Charger: Charge with existing AGM charger and profiles.



Automotive Post & Stud Terminal DT


M8 Insert
