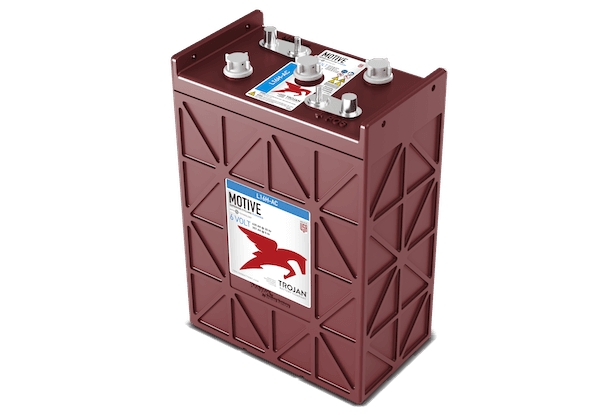

L16H-AC 6V Flooded Battery

L16H-AC 6V Flooded Battery

  • L16H-AC 6V Flooded Battery

L16H-AC 6V Flooded Battery

The L16H-AC 12V flooded battery provides the best energy output to improve productivity in different applications, such as Floor Cleaning Machines and Aerial Work Platforms. The technology inside this flooded lead acid battery enhances performance, offering high- to low-capacity points to increase productive hours.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 935 @75 Amps / 245

Capacity Amp-Hours

5-Hr Rate / 357 Ah 10-Hr Rate / 400 Ah 20-Hr Rate / 435 Ah 100-Hr Rate / 483 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 11.66 (296) Width / 6.94 (176) Height / 16.74 (425)

Weight lbs. (kg)

121 (55)

Operating Temperature

-4°F to 122°F (-20°C to +50°C)

Features & Benefits

  • Maxguard® Advanced Design Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs.
  • Two battery case options:
  • Polyon™ case for exceptional durability in heavy service applications
  • Generic case design for standard applications
  • Heat and corrosion resistant
  • With handles for easy carrying
  • HydroLink™ single-point watering system available
  • Only 5-15% self-discharge per month
  • 99% recyclable



Automotive Post & Stud Terminal DT
