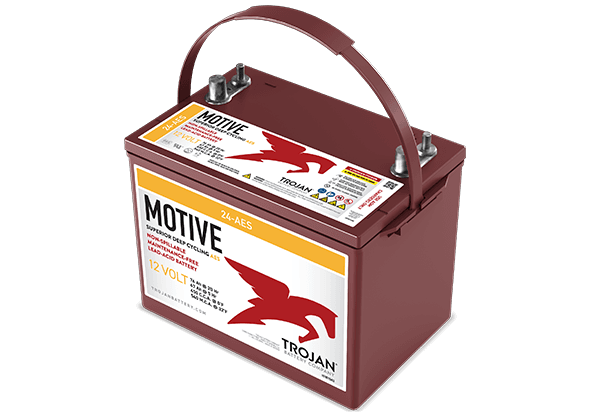

24-AES 12V AGM Battery

Trojan engineered the 24-AES 12V AGM battery for multiple applications such as Transportation or Floor Cleaning. Trojan AES AGM delivers up to 3x the cycle life of standard AGM, with high sustained performance. The Trojan AES AGM battery maintains high capacity in extreme deep cycling (up to 100% DoD), and performs in challenging temperatures and partial charging conditions.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 137

Capacity Amp-Hours

5-Hr Rate / 67 Ah 10-Hr Rate / 70 Ah 20-Hr Rate / 76 Ah 100-Hr Rate / 84 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 10.77 (277) Width / 6.84 (174) Height / 8.62 (219)

Weight lbs. (kg)

54 (24)

Operating Temperature

-40°F to 140°F (-40°C to 60°C)

Features & Benefits

Lasts Longer: Delivers up to 3x longer cycle life than standard AGM batteries. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40°F to 160°F (-40°C to 71°C).

Delivers harmless PSoC: Tested to withstand partial state of charge, or PSoC, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: The Trojan AES AGM battery is classified as non-spillable and can be safely mounted horizontally to fit challenging spaces. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA absorbent glass mat battery is backed by a three-year warranty.
  • AGM Charger: Charge with existing AGM battery charger and profiles.



Automotive Post & Stud Terminal DT
