T-105 AES 6V Battery

T-105 AES 6V Battery

  • T-105 AES 6V Battery
  • EditorsChoiceAwards2023
Award winner

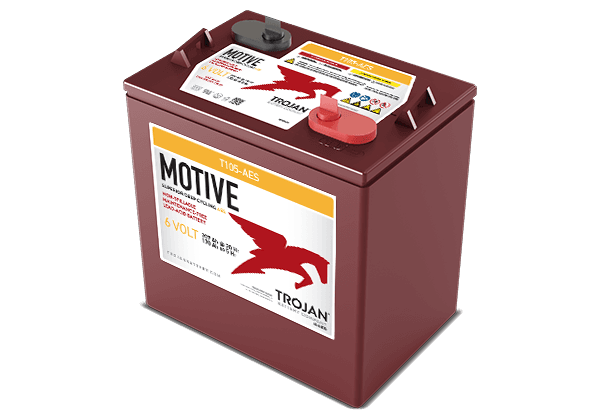

T105-AES 6V AGM Battery

A 6-volt, GC2 AES AGM battery for floor scrubbers, EVs, and marine or boating applications

T105-AES 6V AGM batteries provide true deep-cycle performance with extraordinary quality, cycle life, and support for floor machines, electric vehicles, and marine applications. Trojan AES delivers up to 3x the cycle life of standard AGM, with a high sustained performance. Trojan AES AGM batteries maintain high capacity in extreme deep cycling (up to 100% DoD), in challenging temperatures, and under partial charging conditions.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 420 @75 Amps / 113

Capacity Amp-Hours

5-Hr Rate / 170 Ah 10-Hr Rate / 185 Ah 20-Hr Rate / 207 Ah 100-Hr Rate / 225 Ah

Energy (kWh)

1.35

Dimensions inches (mm)

Length / 10.30 (262) Width / 7.06 (179) Height / 10.73 (273)

Weight lbs. (kg)

68 (32)

Operating Temperature

-40°F to 140°F (-40°C to 60°C)

Features & Benefits

Lasts Longer: Up to 3x longer cycle life than standard AGM. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.

Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40°F to 140°F (-40°C to 60°C).

Delivers harmless PSoC: Tested to withstand partial state of charge, again and again.

  • Maintenance Free: Virtually no maintenance as watering is not required.
  • Safe and Sustainable: Trojan AES is classified as non-spillable and can be safely mounted horizontally to fit difficult locations. It’s made using 80% recycled materials and is 99% recyclable.
  • Rugged Design: Designed and manufactured to absorb vibration and shock.
  • Warranty: This VRLA battery is backed by a three-year warranty.
  • AGM Charger: Charge with existing AGM charger and profiles.

TERMINAL TYPES

0

M8 Insert

0

M8 with LT Adapter

Applications
