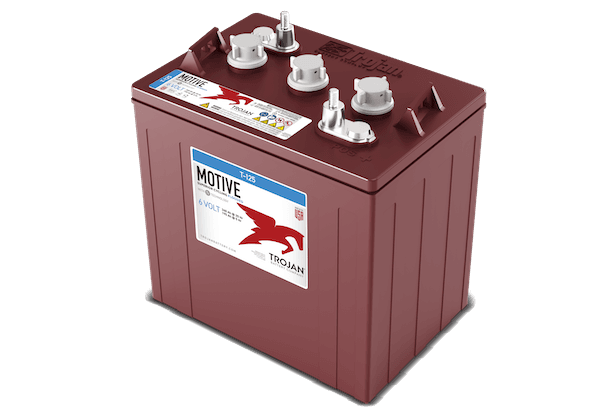

T-125 6V Flooded Lead Acid Battery

The T-125 6V Flooded lead acid battery provides excellent performance with increased total energy for different applications, such as Transportation or Marine. The technology of this battery delivers sustained power, reduces downtime, and lowers overall maintenance costs.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 488 @75 Amps / 132

Capacity Amp-Hours

5-Hr Rate / 195 Ah 10-Hr Rate / 221 Ah 20-Hr Rate / 240 Ah 100-Hr Rate / 266 Ah

Energy (kWh)


Dimensions inches (mm)

Length / 10.30 (262) Width / 7.11 (181) Height / 11.07 (281)

Weight lbs. (kg)

66 (30)

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Features & Benefits

  • Part of the Signature Line, the flagship Trojan flooded lead-acid batteries
  • Featuring Alpha Plus® paste with T2 Technology for maximum sustained performance, longer life and increased total energy
  • Maxguard T2 advanced separator sustains performance providing exceptionally longer battery life and significantly lowering your operating costs.
  • Manufactured polypropylene rugged case
  • Heat and corrosion resistant
  • HydroLink™ single-point watering system makes maintenance easy and safe
  • Only 5-15% self-discharge per month
  • 4 different terminal types
  • 99% recyclable



Embedded Low Profile Terminal ELPT


Embedded High Profile Terminal EHPT


Embedded Automotive Post Terminal EAPT


Embedded Universal Terminal EUT
